Description

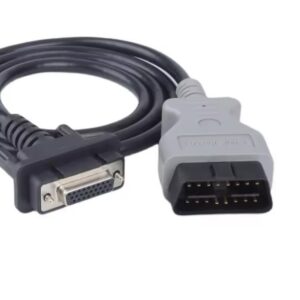

Suzuki SDT Diagnostic tool Cable|OBD-II Male to DB25 Female Cable

SDT Diagnostic tool Cable is the SUZUKI company professional diagnostic tool obd scanner for the Suzuki car. It has a diagnostic function, oscillograph function, and multimeter function. It is a very useful machine to help you repair the SUZUKI car.



Autodiagnos Check – The convenient, uncomplicated service tool

 This Suzuki SDT  Cable is Autodiagnos Check Plug & Play service tool from Continental is the perfect tool for every garage it also any member of staff. It also provides instant access to vehicle systems and takes the user through the service process step-by-step for quick and easy navigation.

Plug & Fix – Service that leads to a quick solution

It also Autodiagnos Check is not cluttered with unnecessary functions. This enables the tool to work quickly and easily to guide the user straight to the relevant tasks for maximum efficiency in service work.

Function:
1. Main function:
Read wrong code;
Clean wrong code
Reade data stream;
Draw data stream curved shape
Setting system;
Control unit programming
Sefl test function
Record and review function

2. Test system
Engine
Automatic transmission
ABC
Controlled traction differential
Stability control
Airbag security;
Central door lock;
Meter cruise suspension air-conditioning
Electronic control turning system

3. Vehicle oscillograph
SMT and execute component
Dual mono oscillograph
Setting time base & electrical level automatically
Storage & playback

4. Digital multimeter
Electrical system test;
Voltage frequency duty cycle

Features:
Touch screen
Backlight control
Palm computer
Compact form
English German French Spanish Italian Chinese Swedish Slovak
Portuguese Polish Norwegian Hungarian Greek Indonesisch Russian
Turkish, 16 kinds of languages menu;
Easy to use;
The factory supplies a good maintenance platform

Packet list:
Mainframe 1 set;
OBD-II cable 1 piece;
Adapter 1 piece;
USB communication line 1 piece;
Oscillograph cable 2 PCS;
Multimeter cable 1 piece;
Aluminum alloy box 1 piece

SUZUKI SDT examples for testing the vehicle
1. Equipment on-line
1.1 Turn on the equipment power;
1.2 To be connected with OBD diagnostic cable.
2. Star the equipment

In Cable Information of OBD2 Connector  :

It also has a Female OBD-II connector on a car Female OBD Connector connector pinout – front view The OBDII specification provides for a standardized hardware interface—the female 16-pin (2×8) J1962 connector. Unlike the OBD-I connector, which was sometimes found, under the hood of the vehicle, the OBD-II connector is required to be within 2 feet (0.61 m) of the steering wheel.

SAE J1962 defines the pinout of the connector as:

The amount of diagnostic information available via FlashTool OBD2 Male OBDII has varied widely since its introduction in the early 1980s versions of onboard vehicle computers.

That is your car telling you there is an issue. If you visit a mechanic, he will use an OBD2 scanner to diagnose the issue.

To do so, he will connect the OBD reader to the OBD2 16-pin connector near the steering wheel.

This lets him read OBD codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.

Features of Suzuki SDT  Flashtool Cable

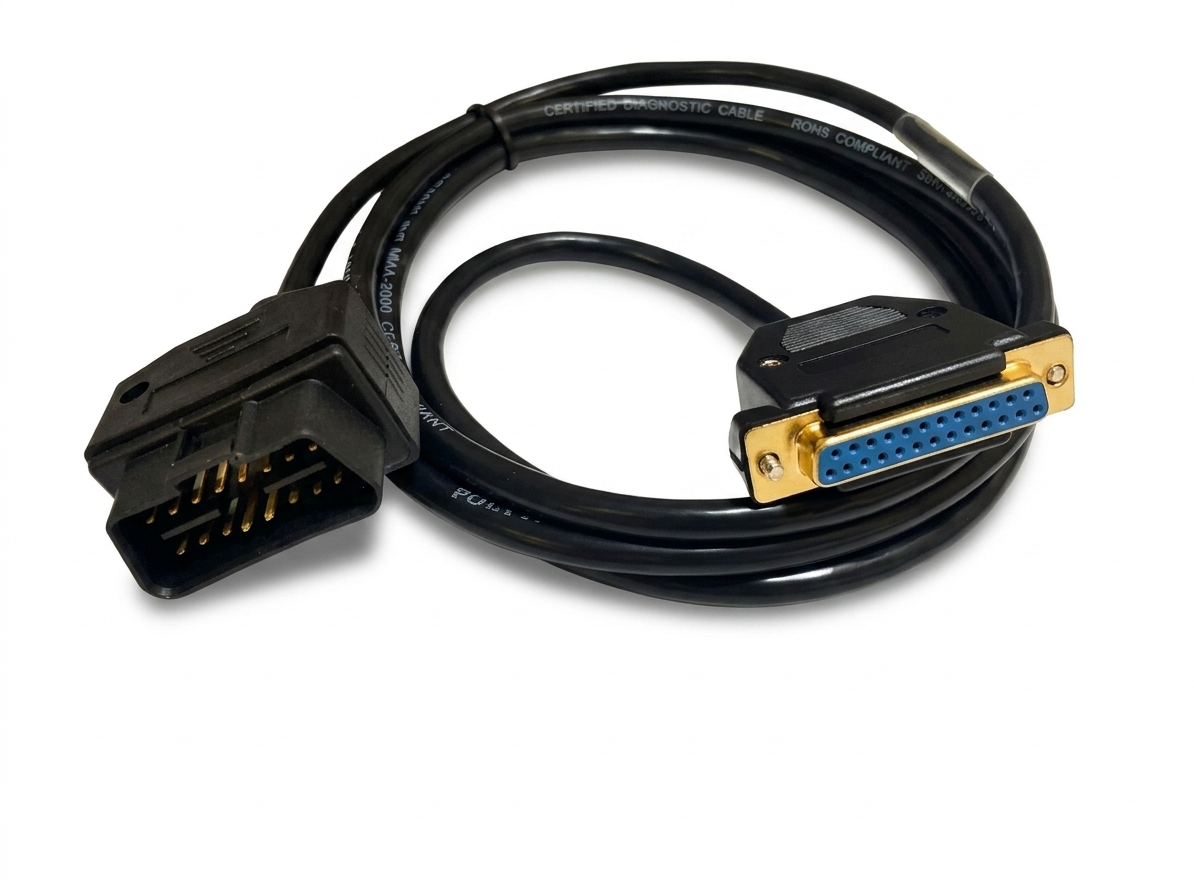

It is also a Brand new and high-quality OBD-II to DB25 Female Diagnostic cable.
For connecting your diagnostic interface and your vehicle with OBD-II compliant
Length: About 200cm
Weight: 252 gm
OBD-II Plug: obd cable 16-pin male to the car,obd scanner cable
Moreover, It is Used for diagnostic  this FlashTool OBD2 Male to DB25 Female obdii cable Diagnostic Cable Engine company Vehicles
Cable core: 16 Core

In Flashtool cable Obd diagnostic Cable OBD Connector Pinout Configuration

Information:

 It is also Compatible with diagnostic tools with a 16-pin socket. It is also Universal for all cars with OBD-II Interface.  it has Cable Length: of 2 Meters, Cable Core: 16,obd scanner cable
