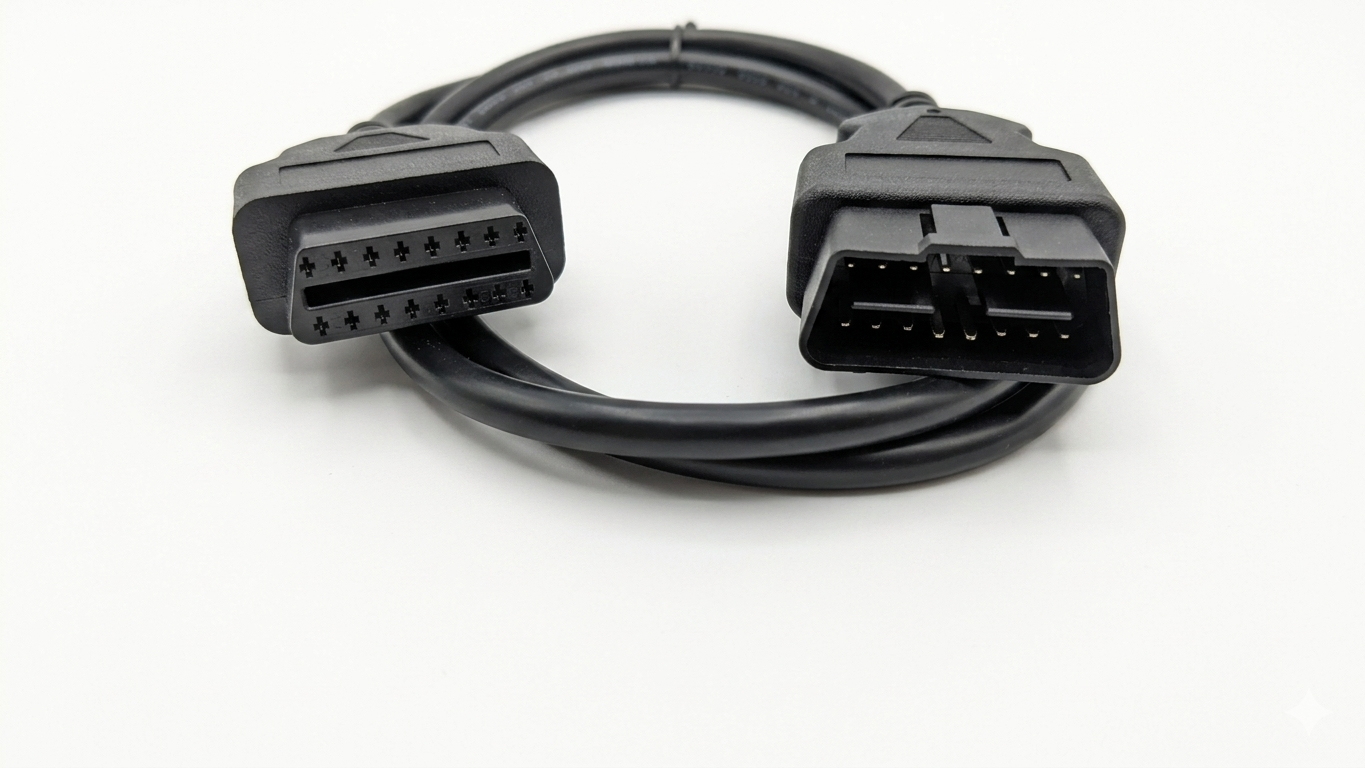

Obd2 Male to Female OBD2 16PIN Extension Cable Diagno obd extender
Obd2 Male to Female OBD2 16 PIN Extension Cable Diagnostic obd extender, High-quality materials give the cable superior flexibility & durability.
Compatible diagnostic tools with a 16 pin socket. Universal for all cars with OBD2 Interface.
Obd2 Male to Female OBD2 16 PIN Extension Cable Diagnostic obd extender:
SAE J1962 defines the pinout of the connector as:
That is your car telling you there is an issue. If you visit a mechanic, he will use an OBD2 scanner to diagnose the issue. To do so, he will connect the OBD2 reader to the OBD2 16 pin connector near the steering wheel. This lets him read OBD2 codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.
Features of Obd2 Male to Female OBD2 16 PIN Extension Cable Diagnostic obd extender: :
Brand new and high-quality OBD-II / Obd2 Male to Female Diagnostic cable.
For connecting your diagnostic interface and your vehicle with OBD-II compliant
Length: About 1 meter
Weight: 300gm
OBD-II Plug: 16-pin male to car
Mainly Used for diagnostic Round OBD-II Male -OBD-II Female Cable Diagnostic Cable Engine Company Vehicles.
Cable core: 8 Core
Obd2 Male to Female OBD2 16 PIN Extension Cable Diagnostic obd extender OBD Connector Pinout Configuration
| Pin Number | Pin Name | Description |
| 1,3,8,9,11,12,13 | Blank | These pins are not standard and are vendor-specific. It also not required for normal communication/interfacing |
| 2 | SAE J1850 Bus+ | This protocol uses Variable Pulse Width and is normally used by GM vehicles. It also Buses positive pin of the protocol. |
| 10 | SAE J1850 Bus- | This protocol uses Variable Pulse Width and is normally used by GM vehicles. It also Buses a negative pin of the protocol. |
| 4,5 | Ground | The ground of the complete system of the Car including the chassis |
| 6 | ISO15765-4 CAN High | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN high Pin. |
| 14 | ISO15765-4 CAN Low | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN low Pin. |
| 7 | ISO 9141 – K Line | It follows an asynchronous serial communication protocol. It also has Kline pin. |
| 8 | ISO 9141 – L Line | It follows an asynchronous serial communication protocol. It also has an L-line pin. |
