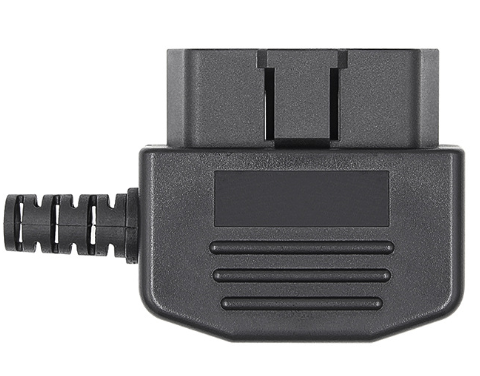

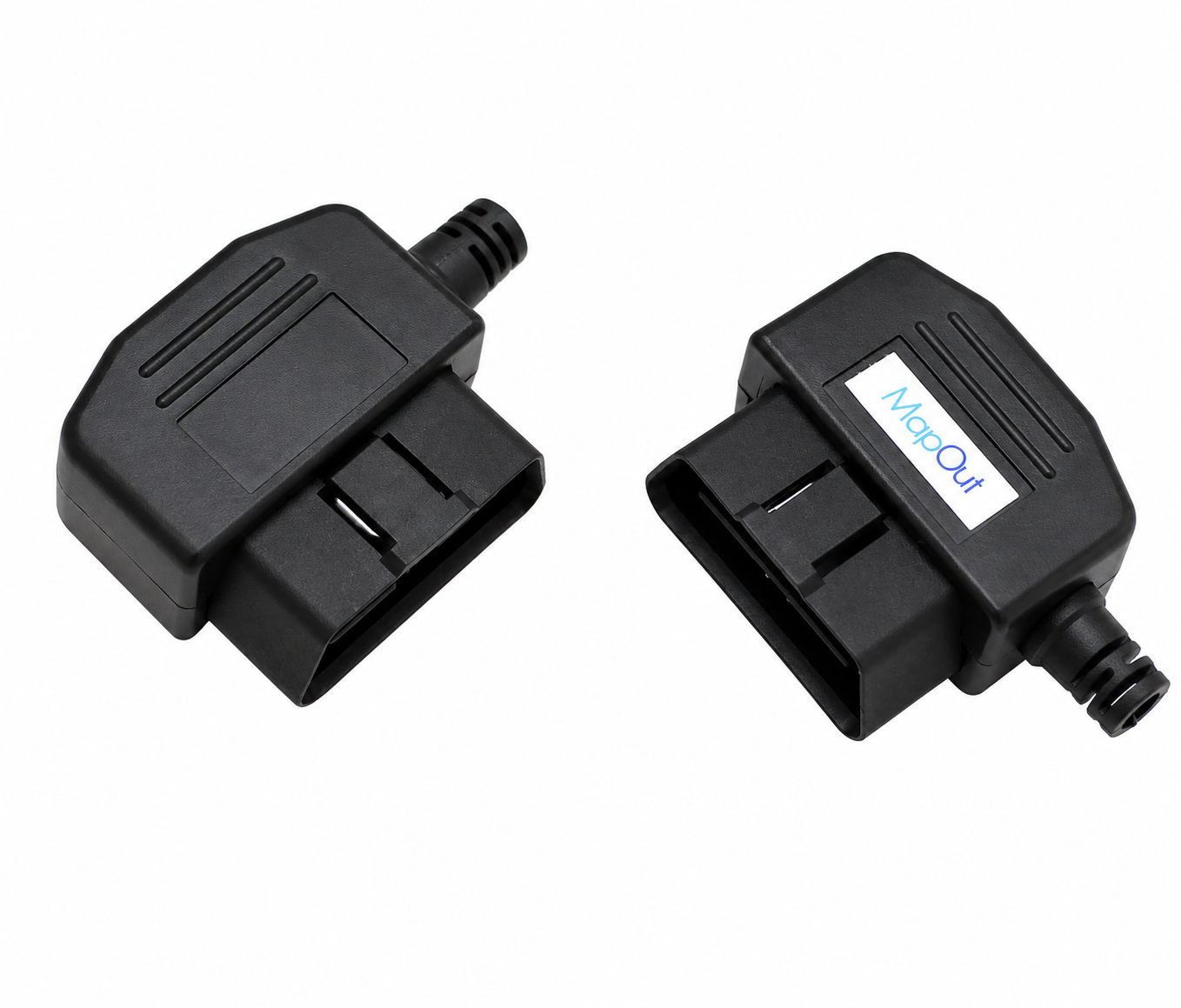

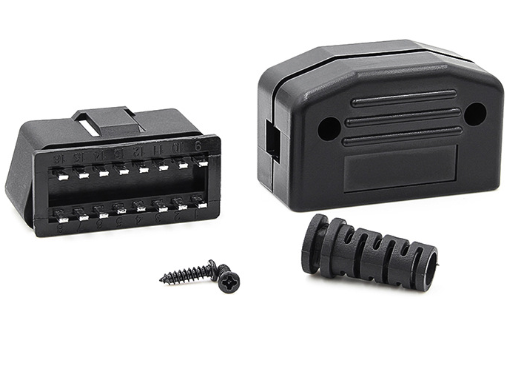

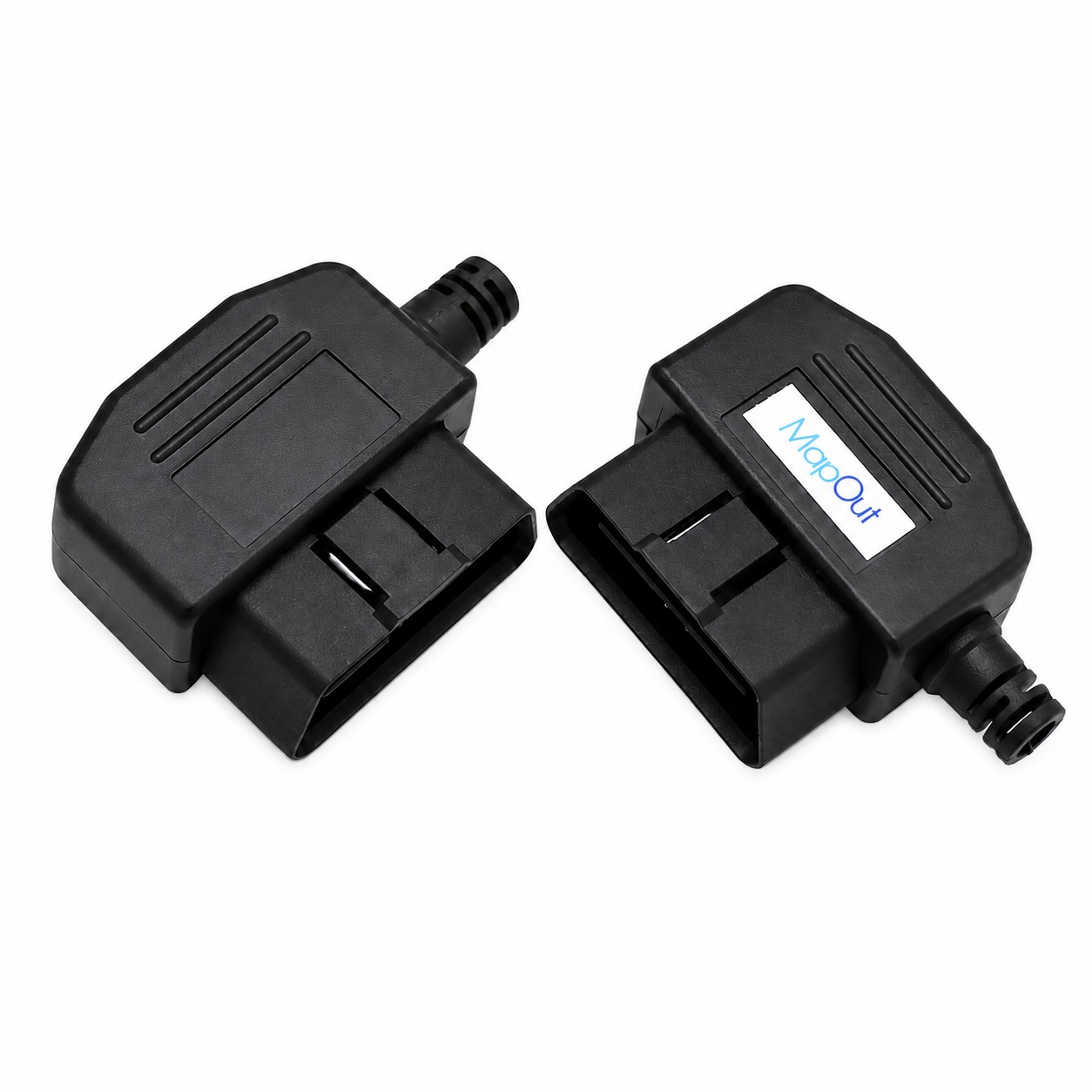

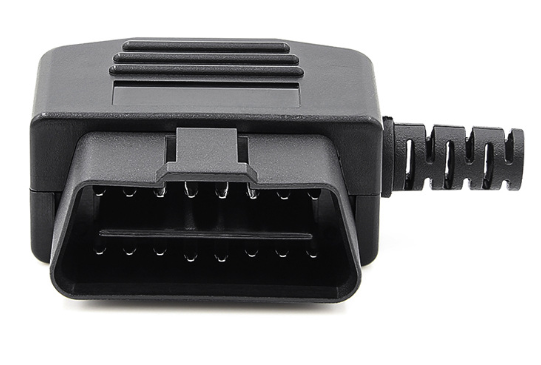

OBD Connector 90 Degree OBDII Connector 16pin Male Connector
There are two types of OBD-II connectors,obd2 male connectors, diagnostic connectors,16 pin obd2 connector,obd2 scanner: type A for vehicles where the supply voltage is 12V and type B for vehicles at 24V. In Figure 1, you see a groove between the two rows of pins going from one end to the other of the connector. This is a type A female connector. The type B female connector has a groove that is interrupted in the middle (see Figure 2 below). This modification prevents a type B male from being accidentally inserted into a type A female (a 12V male into a 24V female), because it would lead to a hardware fault.
When you purchase an OBD-II scanner, make sure the connector type matches the one on your car.
The OBD-II 90 Degree Male protocols
There are 5 signaling protocols that work on the OBD-II interface. These 5 protocols adhere to a common overall main structure, but also have various customizations (minor differences).
- ISO 15765 CAN – starting with the production year 2008, all vehicles tend to use this protocol
- SAE J1850 PWM – mainly used by Ford Motor Company
- ISO 9141-2 – mainly used by Chrysler, all European and most Asian vehicles.
- SAE J1850 VPW – General Motors
- ISO 14230 KWP2000
You will normally use a tool that scans your car through the OBD-II connector. The particular protocol used by your car is important and here is why. The scanner tools that implement all five protocols cost thousands (dollars/euros). The less expensive tools, which are the one’s individual car owners and small shops will use, are usually implementing one particular protocol. So, when purchasing a scanner, make sure it suits the protocol of your car.
If you need to figure out which OBD-II protocol is used on your car, you have to examine the OBD-II connector. In an OBD-II connector, not all pins are populated (look at the blue connector in Figure 1 and you will understand what I mean). Here are the differences in the 5 protocols:
- SAE J1850 VPW –The connector should have metallic contacts in pins 2, 4, 5, and 16, but not 10.
- ISO 9141-2 / KWP2000 –The connector should have metallic contacts in pins 4, 5, 7, 15, and 16.
- SAE J1850 PWM –The connector should have metallic contacts in pins 2, 4, 5, 10, and 16.
- ISO 15765 CAN –The connector should have metallic contacts in pins 4, 5, 6, 14 and 16.
Does my car have OBD-II?
OBDII Connector 16pin Male Connector
Almost certainly, it does.
If your car was manufactured after 1996, your car must implement the OBD-II standard. Also:
- you should be able to see the OBD-II connector from Figure 1 somewhere within reach of the driver.
- there should be a sticker with the text ”OBD-II compliant” under the hood
Take a look at Figure 1 above to see what kind of connector you should be looking for. Pay attention to the number of pins (see section Differences between OBD and OBD-II above)
OBD Fault codes
Through the OBD-II interface, your car will present you with something called diagnostic trouble codes (DTCs).
Many people look into OBD-II scanning tools when they deal with a ”Check engine” light on the dashboard or some driveability problem. The information provided by OBD can help save time and money as it can pinpoint a specific problem cause rather than guessing and replacing components.
The Diagnostic Trouble Codes consist of 5 characters:
- The first letter indicates the family of DTC.
P: Powertrain, (i.e. engine and gearbox)
U: User network
- The first digit indicates if the code is generic or not (green digit):
0: Generic fault
1: Manufacturer fault
- The last three digits/characters indicate the actual fault code
There are 50000+ generic and manufacturer OBD-II Diagnostic Trouble Codes. When you encounter a code, simply Google it and you will reach one of the many online databases which store them all, together with the interpretation and advice for how to proceed.
For example, let us say your OBD-II scanner is showing you DTC P0301. Googling what DTC P0301 means we find not just the meaning of this error code, but also common symptoms, causes, and possible solutions.
OBD scanners diagnostic connector.
There are roughly four main types of OBD-II scanners:
1. Hand-held scan tools
These tools can be:
- simple fault codes readers (possibly with the ability to reset the error codes) aimed at private car owners (Figure 3)
- complex professional and expensive tools with more advanced functions like setting specific electronic control unit (ECU) parameters, graphing engine parameters, etc.
slim 16 pins obd2 male connector
What Is OBD Connectors/90 Degree scanner/obd scanner :
OBD Connector OBD-II is an improvement over OBD-I, the obd2 male connector in both capability and standardization. The OBD2 Connector,obd2 male connector, standard specifies the type of diagnostic connector and its pinout, the electrical signaling protocols available, and the messaging format. It also provides a candidate list of vehicle parameters to monitor along with how to encode the data for each. There is a pin in the connector that provides power for the scan tool from the vehicle battery, which eliminates the need to connect a scan tool to a power source separately.
OBD-II diagnostic/obd2 scanner :
Female OBD-II connectors on a car Female OBDII connectors pinout – front view The OBDII,obd2 male connector specification provides for a standardized hardware interface—the female 16-pin (2×8) J1962 connectors. Unlike the OBD-I connector, which was sometimes found under the hood of the vehicle, the OBD-II connector is required to be within 2 feet (0.61 m) of the steering wheel (unless an exemption is applied for by the manufacturer, in which case it is still somewhere within reach of the driver).
SAE J1962 defines the pinout of the connector as:
